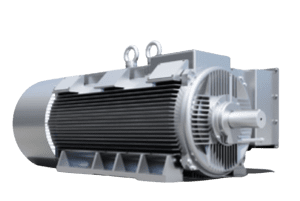

High Voltage Motorji
Čeprav standard IEC 60038 jasno določa meje, se elektromotorji z več kot 1000 V nazivne napetosti pogosto imenujejo visokonapetostni motorji. S čisto mehanskega vidika se srednje in visokonapetostni asinhroni motorji bistveno ne razlikujejo od nizkonapetostnih asinhronih motorjev.
| IE Class | N/A |
| Output | 160kW – 2MW |
| Poles | 2|4|6|8|10|12 pole |
| Speeds | 500–3600 RPM |
| RPM Frequency | 50 Hz | 60 Hz |
| Cast Iron framesize | 315–630 |
| Protection | IP23| IP55 | IP56 | IP65 | IP66 |
| Temperature class | B |
| Cooling | IC411 | IC01 |
| Insulation class | F |
| Duty type | S |
| Standards | N/A |
| Voltage | 3,0 kV|3,3 kV|6,0 kV|6,6 kV|10 kV|11 kV |
Application info
OMEC Motors’ High Voltage Electric Motors are used within a wide variety of applications:
- Fans (airhandling units)
- Hydraulic power packs
- Pumps (for water, fuels, oils)
- Shredders (granulation, crushing)
- Gears (gear reducers, gearmotors)
- Generators
- Compressors
- Cement plants
